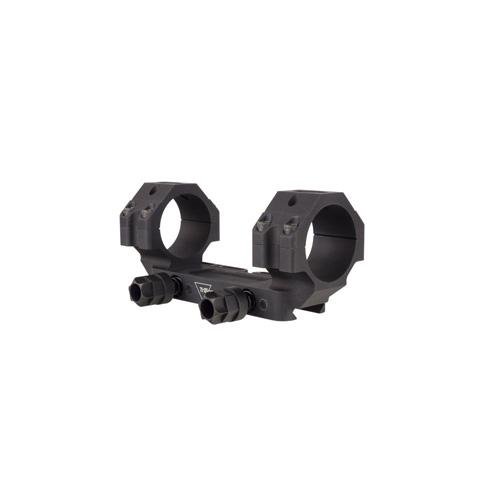

BOLT ACTION MOUNT W/ QLOC – MATTE BLACK 34MM 1.06″ H ABOVE RAIL

Description

Bolt Action Mount

Trijicon’s Bolt Action Mount w/ Trijicon Q-LOC™ Technology is designed to keep the optic as low as possible for hunting and long range precision rifle applications. Featuring a Mil-Spec drop test rated 6061-T6 aluminum design and an easy to use one handed toolless mounting system.The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened.

This mount boasts a low weight and low profile design with precise return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail.

Designed specifically for variable powered optics this lightweight mount is perfect for mounting Trijicon variable powered tube scopes with a 42mm objective lens and smaller on any firearm platform with a picatinny rail.

Distance From Top of Mounting Rail to Optical Axis: 1.06 in.

Torque Spec (to Rail):

Spring Tension Only: 12-16 in. / lbs
Can be Tightened To: 44-66 in. / lbs

Torque Spec (Ring Caps):

14-16 in. / lbs

NOTE: Fits Objective Lens 42mm and Smaller. The Trijicon Q-LOC™ Technology Bolt Action 34mm mount is not compatible with the Credo™/Credo™ HX 1-8×28 riflescope. A Trijicon Q-LOC™ Technology Cantilever 34mm mount is available for the Credo/Credo HX 1-8×28.

Description:

• Quick-release return-to-zero
• Automatic retention keeps optics secure
• Snag-resistant knob design
• Precision-cut dimensions
• Proven durability

Specifications:

• Weight 7.34 oz. (208.09g)
• Tube Size 34mm
• Length 4.7 in (119.38mm)
• Width 2.07 in (52.58mm)
• Height Above Rail (in/mm) 1.06″ in. (26.92mm)
• Feature Trijicon Q-LOC™ Technology
